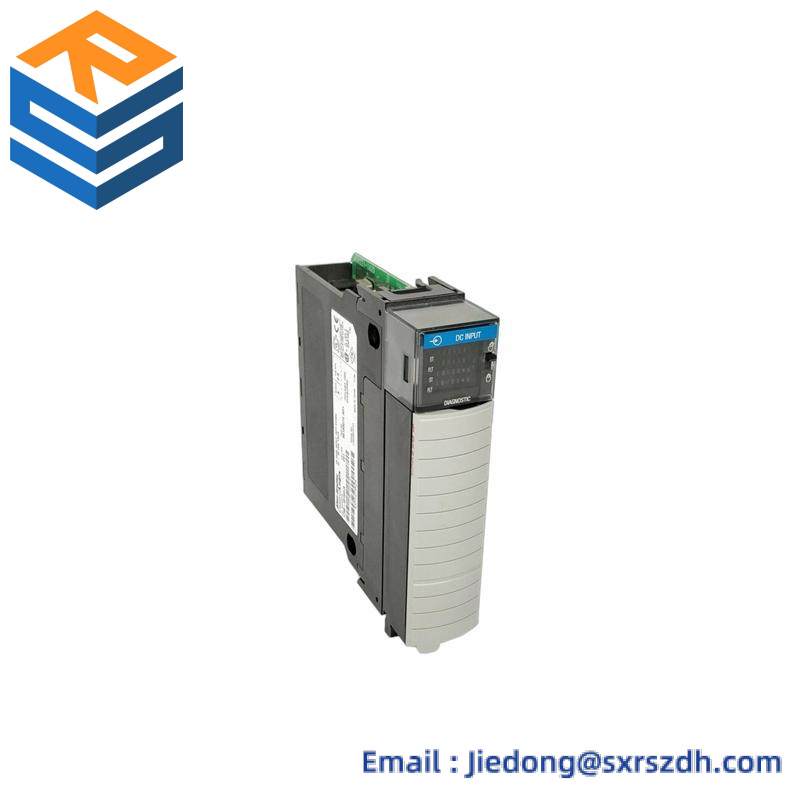

AB 1756-IB16D Digital Input Module for Allen-Bradley PLC Systems

Brand:AB

Model:1756-IB16D

Input Type:Digital Input

Number of Inputs:16

Operating Voltage:20.4…26.4V DC

Current per Point:0.5 A @ 60 °C (140 °F), 1.0 A @ 30 °C (86 °F)

Power:24 Volts DC

Bus Current Draw, Max:200 mA

Mounting:DIN Rail or Panel Mount

Communication Cable:16-Point Voltage Category: 24V DC Source

    The AB 1756-IB16D is an essential component for any industrial automation system. This digital input module seamlessly integrates with Allen-Bradley ControlLogix platforms, providing real-time data acquisition and signal conditioning capabilities. With 16 channels of digital inputs, it supports a wide range of industrial signals including dry contact, TTL, and NPN/PNP transistor switches, ensuring robust and reliable operation in harsh industrial environments. The module operates on a 24V DC power supply, delivering a current of up to 0.5 A at 60°C. It can withstand extreme temperatures from -40°C to +85°C, making it ideal for use in demanding industrial settings. Designed for ease of installation, the 1756-IB16D can be mounted either on a DIN rail or directly on a panel, providing flexibility in various deployment scenarios. Its compatibility with ControlNet, DeviceNet, and EtherNet/IP communication interfaces ensures seamless integration with existing industrial networks.
